Milestone 3: Visual Sensitivity Analysis

The main aim for this milestone is to assist project manager improve fairness and overall satisfaction of all stakeholders as measured by the metrics by assigning and swapping members between teams. To meet this goal, you are required to incorporate appropriate GUI and event handling for adding and swapping members. You are required to combine the model class from the previous milestone with view and controller classes developed with either Scene Builder and fxml or Java FX directly.

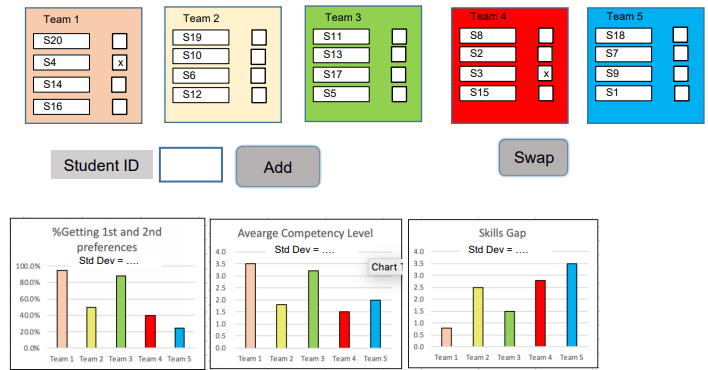

• When adding project manager should specify the Student ID and tick an empty location on one of the teams before pressing Add.

• When swapping user should click the two student IDs to be swapped before clicking the Swap button.

• All the metrics must be immediately updated and shown visually. Compute and display the standard deviation for all three metrics.

• You are expected to display error messages in appropriate dialogs (not console mode) when invalid add or swap attempts are made (such as attempting to swap 3 elements at a time).

• You are required to clearly separate the code for the model, view and the controller.

• Appropriate layout managers to ensure GUI window is consistent even when resized
