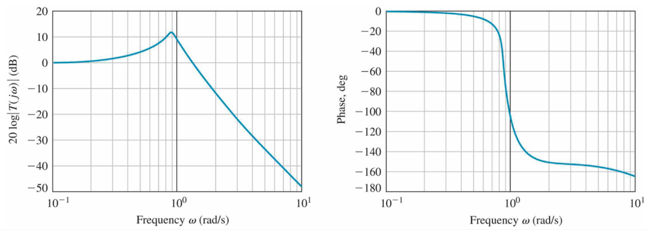

Bode plots show the frequency response, that is, the changes in magnitude and phase as a function of frequency. This is done on two semi-log scale plots. The top plot is typically magnitude or “gain” in dB. The bottom plot is phase, most commonly in degrees. The Bode plot for the open-loop transfer function, i.e. G(s)H(s), gives a convenient way to determine the above parameters and hence the stability of a system. An open-loop gain of 1 is, on the log scale of dB, a gain of 20 lg 1=0 dB.
