FIGURE 3 shows an open loop system containing a distance

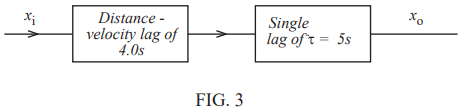

3. FIGURE 3 shows an open loop system containing a distance velocity lag and a single transfer lag.

If the system input xi is subjected to a step disturbance from 2 units to 12 units, plot the response of xo on a base of time. Determine graphically, and verify mathematically, the time taken for the output to change by 4 units.

Hint
EngineeringThe absence of measurement or "feedback" to compare the output signal or condition with the input signal or system set point is what constitutes a "open-loop system," according to the definition. Consequently, "Non-feedback systems" is a popular term used to describe open-loop systems....
